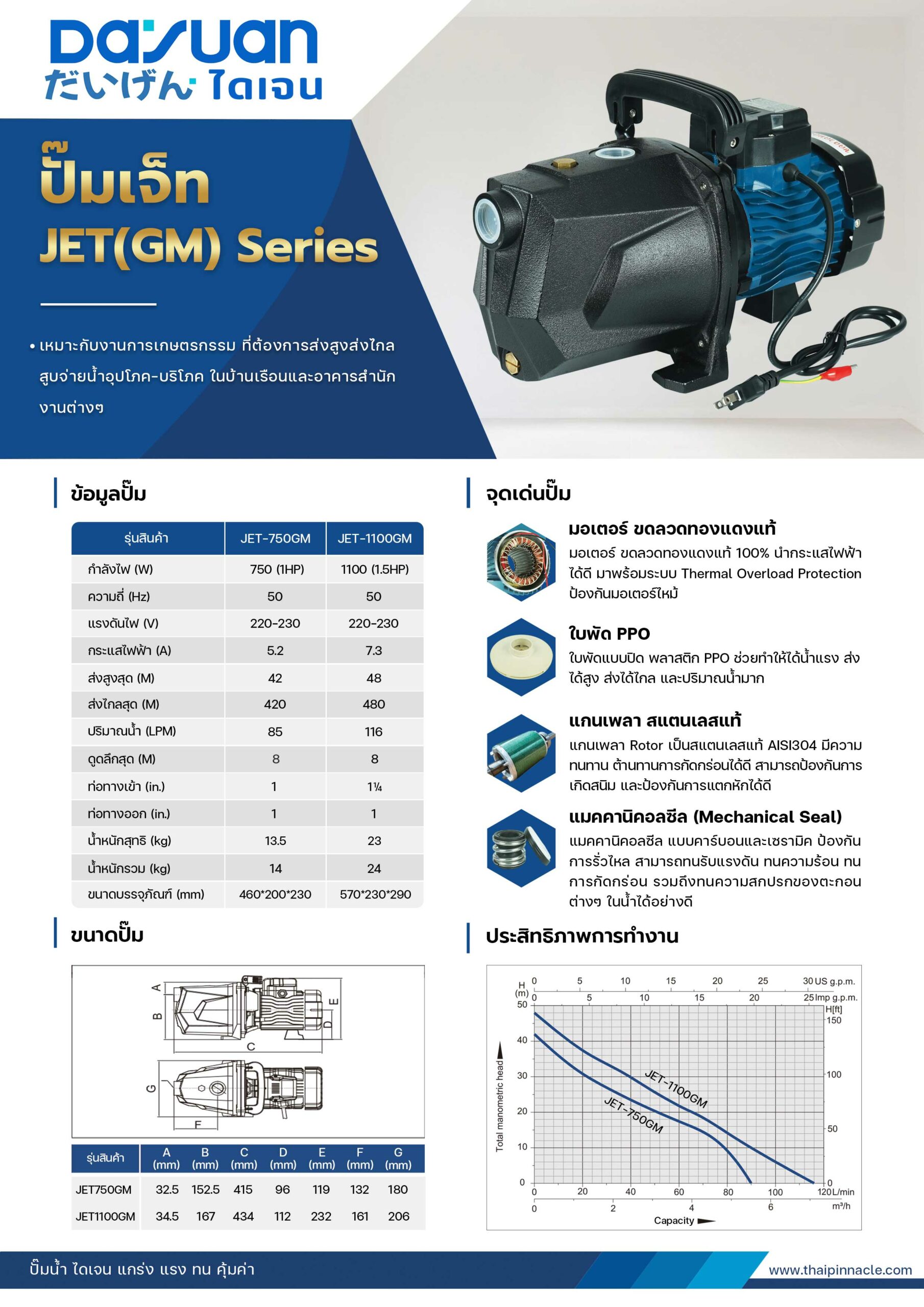

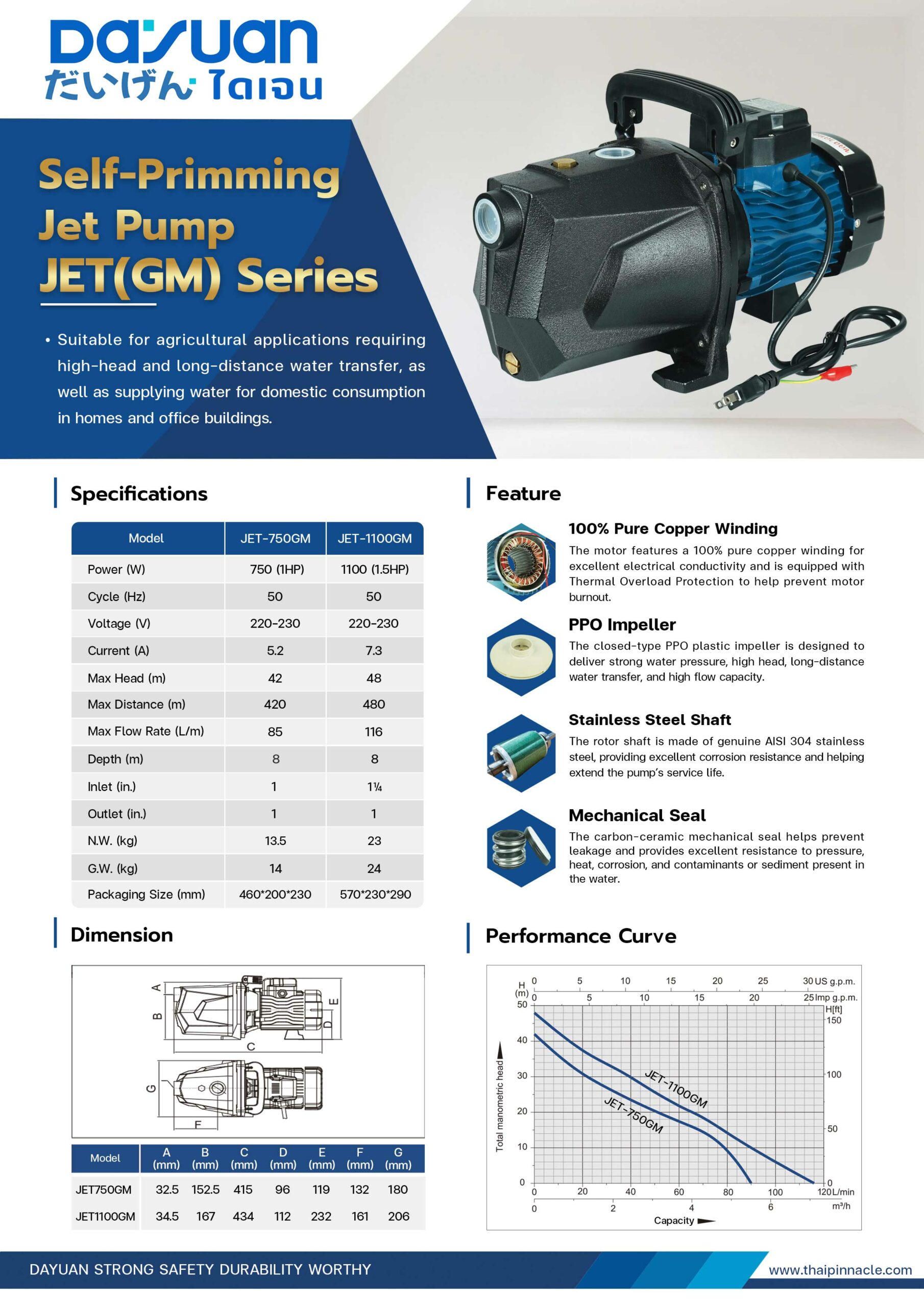

Self-Priming Jet Pump (JET-GM Series)
฿3,130.00
| DN : | 1" – 1.25" |
| Q Max. : | Up to 116 L/min |
| Pressure : | Up to 48 m |
| Depth : | Up to 8 m |
| Power : | 750 – 1100 W |
| Temp : | 4°C ~ +60°C |
Feature
1. Centrifugal Jet Pump (Centrifugal Pump) also known as a jet pump.
2. The pump features a compact design for easy installation, convenient handling, and simple maintenance.
3. Made from high-quality materials for excellent strength and durability.
4. The motor is wound with copper wire for excellent electrical conductivity and high heat resistance.
5. Low noise operation and constant water pressure.
6. Close impeller made from cast iron.
7. The mechanical seal is made of carbon-ceramic material to help prevent water from entering the motor.
8. Equipped with a diffuser to help increase water pressure, enabling high-head and long-distance water transfer.
9. The shaft is made of AISI 304 stainless steel, providing high strength, durability, and excellent resistance to wear and corrosion.
10. The bearings are designed to resist water and dust, helping extend the pump’s service life.
11. Ground wire for best protection.
Application
1.Suitable for clean water
2. Suitable for various agricultural applications requiring high-head and long-distance water transfer.
3. Suitable for air-conditioning systems.
4. Suitable for domestic water supply in residential homes and buildings.
5. The JET(SC) Series, the pump can be used with drinking water systems.
| DN | 1" - 1.25" |
|---|---|
| Q Max. | Up to 116 L/min |
| Pressure | Up to 48 m |
| Depth | Up to 8 m |
| Power | 750 – 1100 W |
| Temp | 4°C ~ +60°C |
