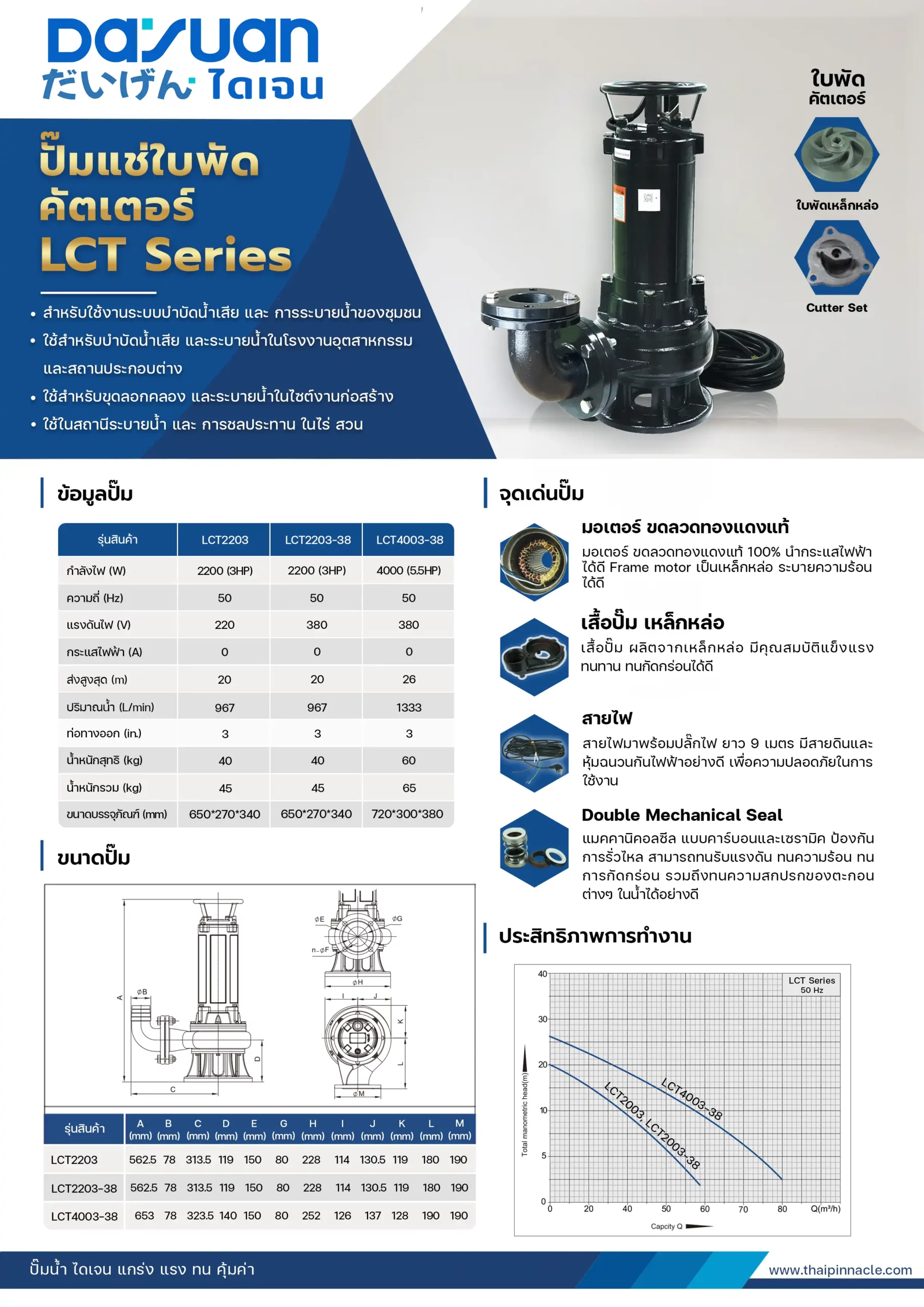

Submersible Cutter Pump (LCT 3 Phase Series)
| DN : | 3" – 4" |
| Q Max. : | Up to 1,500 L/min |
| Pressure : | Up to 26 m |
| Depth : | Up to 5 m |
| Power : | 2200 - 4000 W |
| pH: | 6 – 8.5 |
Feature
1. Submersible Pump, also known as a Submersible Cutter Pump, designed for pumping wastewater containing solid waste and debris.
2. Made of high quality materials.
3. The motor is wound with 100% pure copper for excellent electrical conductivity. The motor frame is made of cast iron for efficient heat dissipation.
4. The pump base is made of cast iron for strength and durability.
5. Supplied with a 10-meter power cable and plug.
6. Mechanical seal Ceramic-Graphite
7. The non-clog impeller allows coarse solids and sediment to pass through, helping reduce clogging inside the pump.
8. Equipped with a double mechanical seal, double O-rings, and an oil seal to help prevent water from entering the motor.
9. The shaft is made of stainless steel, providing high strength, durability, and corrosion resistance.
10. The bearings are designed with water- and dust-resistant properties for reliable operation.
11. Capable of pumping liquids with a pH range of 6 – 8.5
12. Ground wire for best protection.
Application
– Suitable for municipal wastewater treatment and drainage systems.
– Suitable for wastewater treatment and drainage applications in industrial plants and various commercial facilities.
– Suitable for canal dredging and drainage at construction sites.
– Suitable for drainage stations and irrigation applications in farms and agricultural areas.
| DN | 3" – 4" |
|---|---|
| Q Max. | Up to 1,500 L/min |
| Pressure | Up to 26 m |
| Depth | Up to 5 m |
| Power | 2200 – 4000 W |
| pH | 6 – 8.5 |
