Industry

On Land

Close-Coupled Centrifugal Pump (GPS Series)

Series	Close-Coupled Centrifugal Pump (GPS Series)
DN	25 – 300 mm
Flow rate	2 - 900 m³/h
Pressure	12 - 130 m
Power	0.37 - 90 kW
Speed	1450 RPM, 2900 RPM
Material	FC200, SUS304, SUS316
Temp	≤ 85 °C

Evaporative Cooling Pump (GZ Series)

Series	Evaporative Cooling Pump (GZ Series)
DN	50 - 150 mm
Flow rate	16 - 270 m³/h
Pressure	4 - 9.8 m
Power	0.37 – 7.5 kW
Speed	1450 RPM, 2900RPM
Material	FC200
Temp	≤ 85 °C

In-line Centrifugal (LPS Series)

Series	In-line Centrifugal (LPS Series)
DN	25 – 300 mm
Flow rate	2 – 864 m³/h
Pressure	12 – 116 m
Power	0.37 - 90 kW
Speed	1450 RPM, 2900 RPM
Material	FC200
Temp	≤ 85 °C

Single-Stage Horizontal centrifugal Pump (ISP Series)

Series	Single-Stage Horizontal centrifugal Pump (ISP Series)
DN	32 – 200 mm
Flow rate	Up to 600 m³/h
Pressure	Up to 150 m
Power	0.75 – 90 kW
Speed	1450 RPM, 2900 RPM
Material	FC200, SUS304, SUS316
Temp	≤ 85 °C

Single-Stage Horizontal centrifugal Pump (ISH Series)

Series	Single-Stage Horizontal centrifugal Pump (ISH Series)
DN	32 – 200 mm
Flow rate	Up to 600 m³/h
Pressure	Up to 150 m
Power	0.75 – 90 kW
Speed	1450 RPM, 2900 RPM
Material	FC200, SUS304, SUS316
Temp	≤ 85 °C

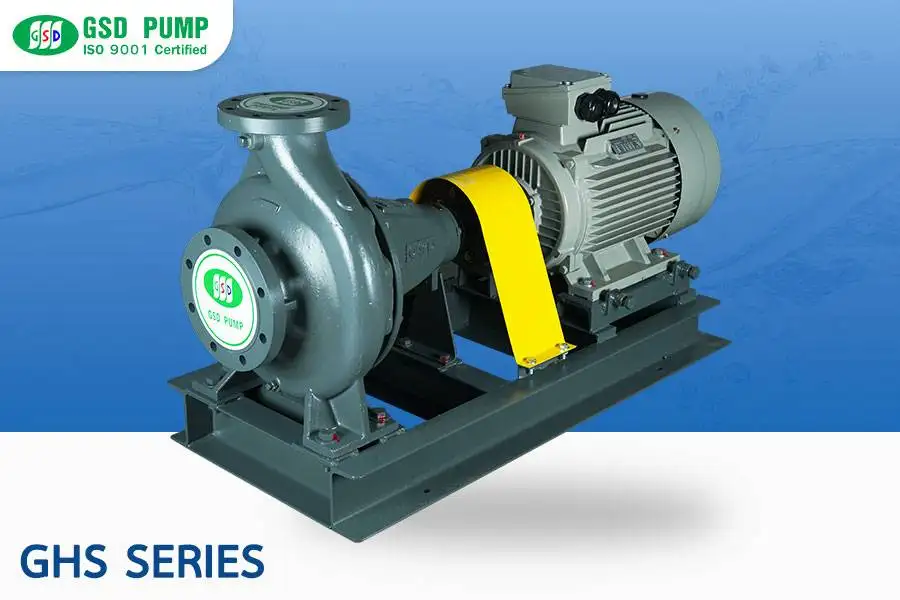

Single stage, Single suction centrifugal Pump Closed Impeller (GHS Series)

Series	Single stage, Single suction centrifugal Pump Closed Impeller (GHS Series)
DN	32 - 300 mm
Flow rate	4.5 – 1660 m³/h
Pressure	5.2 – 150 m
Power	–
Speed	1450 RPM, 2900RPM
Material	FC200, SUS304, SUS316
Temp	≤ 85 °C

End Suction Centrifugal Pump closed impeller (GHS Series)

Series	End Suction Centrifugal Pump closed impeller (GHS Series)
DN	32 – 300 mm
Flow rate	4.5 – 1660 m³/h
Pressure	5.2 – 150 m
Power	0.37 - 90 kW
Speed	1450 RPM, 2900 RPM
Material	FC200, SUS304, SUS316
Temp	≤ 85 °C

End Suction Centrifugal Pump Semi Open Impeller (GHSK Series)

Series	End Suction Centrifugal Pump Semi Open Impeller (GHSK Series)
DN	32 - 300 mm
Flow rate	4.5 – 1660 m³/h
Pressure	5.2 – 150 m
Power	0.37 - 90 kW
Speed	1450 RPM, 2900 RPM
Material	FC200, SUS304, SUS316
Temp	≤ 85 °C

Self-Priming Pump (GMP Series)

Series	Self-priming pump (GMP Series)
DN	50 - 150 mm
Flow rate	6 - 210 m³/h
Pressure	8 – 30 m
Power	0.75 – 22 kW
Speed	2900 RPM, 1450 RPM
Material	FC200, SUS304, SUS316
Temp	≤ 40 °C

Connecting Self-Priming Pump (KMP Series)

Series	Connecting Self-Priming Pump (KMP Series)
DN	50 - 150 mm
Flow rate	6 - 210 m³/h
Pressure	8 – 30 m
Power	0.75 – 22 kW
Speed	1450 RPM, 2900 RPM
Material	FC200, SUS304, SUS316
Temp	≤ 40 °C

Double-suction Split Case Pump (DH(V) Series)

Series	Double-suction Split Case Pump (DH(V) Series)
DN	125 – 400 mm
Flow rate	50 – 3000 m³/h
Pressure	10 – 150 m
Power	–
Speed	1450 RPM, 2900 RPM
Material	FC200, SUS304, SUS316
Temp	≤ 85 °C

Dry Pit Non-Clog Centrifugal Pump (CVD/CHD Series)

Series	Dry Pit Non-Clog Centrifugal Pump (CVD/CHD Series)
DN	50 – 400 mm
Flow rate	10 – 2500 m³/h
Pressure	6 – 45 m
Power	0.75 - 160 kW
Speed	2900 RPM, 1450 RPM, 980 RPM, 740 RPM
Material	FC200
Temp	≤ 40 °C

Vertical Dry Pit Non-Clog Centrifugal Pump (CVDC Series)

Series	Vertical Dry Pit Non-Clog Centrifugal Pump (CVDC Series)
DN	50 - 250 mm
Flow rate	10 – 700 m³/h
Pressure	6 – 45 m
Power	0.75 – 30 kW
Speed	1450 RPM, 980 RPM
Material	FC200
Temp	≤ 40 °C

Vertical Multi-Stage Centrifugal Pump (ALD series)

Series	Vertical Multi-Stage Centrifugal Pump (ALD series)
DN	25 – 150 mm
Flow rate	0.4 – 240 m³/h
Pressure	Up to 330 m
Power	0.37 - 110 kW
Speed	2900 RPM
Material	SUS304, SUS316
Temp	-20 to +120 °C
